Pyranometers

远地点offeres two types of pyranometers; our silicon-cell models and thermopile models.
远地点提供两种类型的日射强度计;我们的起源nal silicon-cell models and our new line of thermopile pyranometers, both of which are now ISO 9060:2018 Class C rated (previously known as second class). Silicon-cell solar radiation sensor models are excellent for applications that do not require the higher accuracy and cost of a thermopile pyranometer. They are less expensive and have a faster response time, but have higher errors under cloudy conditions. Our new cost-effective thermopile pyranometers features a blackbody thermopile detector that provides a much broader and more uniform spectral response for better performance in all atmospheric conditions thatcompares favorablyto Class A thermopile pyranometers at a fraction of the cost. Applications include shortwave radiation measurement in agricultural, ecological, and hydrological weather networks, measurement of global solar radiation, and optimizing photovoltaic systems.
Silicon-cell Pyranometers

Detector Type
Silicon-cell

Classification
ISO 9060:2018Class C

Spectral Range
360 to 1120 nm

Response Time
Less than 1 ms

Error Due to Clouds
+10 to 15 % (common to all silicon-cell pyranometers)

Heated Option
SP-230 All-season has a 0.2 W heater

Output Options
Available in multiple analog options and attached to a hand-held meter with a digital output.

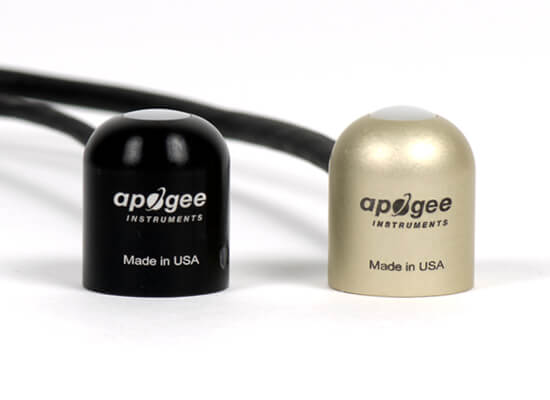

Silicon-cell pyranometer and thermopile pyranometer side-by-side.
Thermopile Pyranometers

Detector Type
Blackbody Thermopile

Classification
ISO 9060:2018Class C

Spectral Range
Upward-looking: 385 to 2105 nm
Downward-looking: 295 to 2685 nm

Response Time
0.5 seconds

Error Due to Clouds
±2%

Heated Option
Sensors have a 0.2 W heater

Output Options
Available in analog option

Upward- and Downward-looking Options

Learn more about silicon-cell pyranometers.

Silicon-cell Models

Learn More

Thermopile Models

Learn More
  • Silicon-cell Pyranometers
  • Thermopile Pyranometers

Shop by brand

  • 远地点
  • Campbell Scientifice

Shop by price

  • $0.00 - $223.00
  • $223.00 - $441.00
  • $441.00 - $659.00
  • $659.00 - $877.00
  • 877.00美元- 1095美元
MP-100: Pyranometer Integral Sensor with Handheld Meter
Quick View

MP-100: Pyranometer Integral Sensor with Handheld Meter

$361.00
MP-200: Pyranometer Separate Sensor with Handheld Meter
Quick View

MP-200: Pyranometer Separate Sensor with Handheld Meter

$411.00
SP-510-SS Upward-Looking Thermopile Pyranometer
Quick View

SP-510-SS Upward-Looking Thermopile Pyranometer

$333.00
SP-610-SS Downward-Looking Thermopile Pyranometer
Quick View

SP-610-SS Downward-Looking Thermopile Pyranometer

$333.00
SP-110-SS: Self-Powered Pyranometer
Quick View

SP-110-SS: Self-Powered Pyranometer

$223.00
SP-212-SS: Amplified 0-2.5 Volt Pyranometer
Quick View

SP-212-SS: Amplified 0-2.5 Volt Pyranometer

$273.00
SP-214-SS Amplified 4-20 Milliamp Pyranometer
Quick View

SP-214-SS Amplified 4-20 Milliamp Pyranometer

$298.00
SP-215-SS: Amplified 0-5 Volt Pyranometer
Quick View

SP-215-SS: Amplified 0-5 Volt Pyranometer

$273.00
远地点Instruments SP-230 All-season Heated Pyranometer
Quick View

SP-230-SS: All-Season Heated Pyranometer

$263.00
SP-420 Smart Pyranometer | USB Output
Quick View

SP-420 Smart Pyranometer | USB Output

$273.00
SP-421-SS SDI-12 Digital Output Silicon-cell Pyranometer
Quick View

SP-421-SS SDI-12 Digital Output Silicon-cell Pyranometer

$323.00
SP-422-SS Modbus Digital Output Silicon-cell Pyranometer
Quick View

SP-422-SS Modbus Digital Output Silicon-cell Pyranometer

$323.00
远地点Instruments PV-100 PV Monitoring Package includes a silicon--cell pyranomter with a mounting bracket, Class A PRT back-of-panel temperature sensor with kapton tape, fan-aspirated solar radiation shield with 24 V-12 V DC converter, and Class A PRT air temperature sensor with TS-100 port adapter.
Quick View

PV-100: PV Monitoring Package

$1,095.00
SP-710-SS: Albedometer Sensor Package
Quick View

SP-710-SS: Albedometer Sensor Package

$663.00
SP-722-SS Modbus Digital Output Thermopile Albedometer
Quick View

SP-722-SS Modbus Digital Output Thermopile Albedometer

AA-100: Protective Carrying Case
Quick View

AA-100: Protective Carrying Case

$24.00
AL-100: Solar Sensor Leveling Plate
Quick View

AL-100: Solar Sensor Leveling Plate

$42.00
AL-120 Solar Mounting Bracket with Leveling Plate
Quick View

AL-120 Solar Mounting Bracket with Leveling Plate

$62.00
AL-130 Albedo Meter Bracket-Accommodates the SP-510 and SP-610 pyranometers to create an albedo meter.
Quick View

AL-130 Albedometer Mounting Bracket

$72.00
AM-150 Albedometer Solar Panel Clamping Bracket
Quick View

AM-150 Albedometer Solar Panel Clamping Bracket

$29.00
AM-130 Albedometer Mounting Fixture with 12
Quick View

AM-130 Albedometer Mounting Fixture with 12" Rod

$35.00
AM-310: Sensor Wand
Quick View

AM-310: Sensor Wand

$59.00
AM-320 Water Submersible Sensor Wand
Quick View

AM-320 Water Submersible Sensor Wand

$59.00
远地点Instruments AL-210 Meter Leveling Plate/Mounting Bracket
Quick View

AL-210 :Meter Leveling Plate / Mounting Bracket

$65.00
The AM-001 Meter Mounting Bracket is designed for handheld meters with solar radiation sensors attached via cable (MQ-200, MQ-500, MU-200, MP-200). The bracket mounts the sensor to the back of the meter, as seen in the image to the right, making it easier for the user to take sample measurements with the sensor and meter.
Quick View

AM-001: Meter Mounting Bracket

$18.00
AC-100: Communication Cable
Quick View

AC-100: Communication Cable

$62.00
AB-100: Meter Battery
Quick View

AB-100: Meter Battery

$5.00
AC-421 SDI-12 to USB Converter
Quick View

AC-421 SDI-12 to USB Converter

$130.00
AC-422 Modbus to USB Converter
Quick View

AC-422 Modbus to USB Converter

$150.00
