bob体育竞技Apogee仪器吸入辐射屏蔽提供了最小的功率拉伸的空气温度测量。 — 精确测量空气温度

Apogee Instruments’ fan-aspirated radiation shield works with several temperature and humidity sensors to provide research-grade measurements with minimal power consumption. It is ideal for solar-powered sites.

Rugged, Low-power Fan

The fan has an ingress protection (IP) rating of 55, virtually eliminating moisture and dust ingress. At full speed the power requirement is 1 W (80 mA at 12 V DC). To conserve power fan speed can be reduced, via pulse width modulation (PWM), to 0.3 W at night or when wind speed is greater than 3 m s^-1without loss of accuracy. If the fan is continuously operated at full speed lifetime is rated at 50,000 hours (5.7 years). The fan includes a tachometer, allowing RPM to be mounted to detect obstruction of the fan.

空气动力学形状

The curved inlet facilitates the reduction of air into the shield through the Coandã effect (tendency of fluid to follow a convex surface). The tapered diameter of the internal surface enhances air velocity through the Venturi effect (reduction in fluid pressure after flowing through a constriction). Both effects contribute to more efficient air flow and allow for a lower power fan than other fan-aspirated radiation shields on the market.

Sensor Compatibility

各种湿度和温度传感器通过使用适配器插头与屏蔽一起使用。标准适配器插头可用于Apogee ST-110热敏电阻，Apogee ST-300 PRT和EE08-SS空气温度/相对湿度探头。根据要求，自定义插头也可用于传感器，如Vaisala HMP110，Campbell Scientific CS215，Rotronic HC2-S3或温度传感器和相对湿度探头的组合。请contact usto discuss options, andclick here to view a guideline用于自定义适配器插头约束。

Research Grade Accuracy

Extensive tests with replicate shields over the past three years have shown the TS-100compares favorably(± 0.02° C) to all the higher-powered industry standard fan-aspirated shields. Using our recommended ST-110 precision thermistor provides a measurement uncertainty of ± 0.1 C.

典型应用

Applications include air temperature and humidity measurement in weather networks, often for weather forecasting, andb0b体育app下载。风扇吸气屏蔽在陆地表面高于和气候变化监测方面的空气温度和湿度梯度的精确测量中也很重要。

High Quality Cable

吸气辐射屏蔽s feature an IP68, marine-grade stainless-steelcable connectorlocated on the fan (optional for temperature sensors) to simplify sensor removal for maintenance and recalibration. Cable is shielded, twisted-pair wire with a TPR jacket for high water resistance, UV stability, and flexibility in cold conditions.

Purchasing Options

There are two models to choose from when purchasing the shield. The TS-100 is a shield only model. The TS-110 comes with a discounted, pre-installed ST-110 precision thermistor that provides ± 0.1 C uncertainty right out of the box.

Warranty and Support

All Apogee products are backed by an industry-leading four year warranty and outstanding customer support.

Specs Table
Learn More

视频
Learn More

Case Studies
Learn More

苏pport Info
Learn More

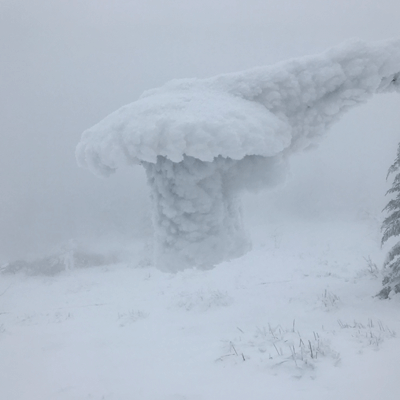

TS-100 aspirated radiation shield entirely covered in ice but still working perfectly. — 精确测量空气温度

Apogee Instruments’ fan-aspirated radiation shield works with several temperature and humidity sensors to provide research-grade measurements with minimal power consumption. It is ideal for solar-powered sites.

Rugged, Low-power Fan

The fan has an ingress protection (IP) rating of 55, virtually eliminating moisture and dust ingress. At full speed the power requirement is 1 W (80 mA at 12 V DC). To conserve power fan speed can be reduced, via pulse width modulation (PWM), to 0.3 W at night or when wind speed is greater than 3 m s^-1without loss of accuracy. If the fan is continuously operated at full speed lifetime is rated at 50,000 hours (5.7 years). The fan includes a tachometer, allowing RPM to be mounted to detect obstruction of the fan.

空气动力学形状

The curved inlet facilitates the reduction of air into the shield through the Coandã effect (tendency of fluid to follow a convex surface). The tapered diameter of the internal surface enhances air velocity through the Venturi effect (reduction in fluid pressure after flowing through a constriction). Both effects contribute to more efficient air flow and allow for a lower power fan than other fan-aspirated radiation shields on the market.

Sensor Compatibility

各种湿度和温度传感器通过使用适配器插头与屏蔽一起使用。标准适配器插头可用于Apogee ST-110热敏电阻，Apogee ST-300 PRT和EE08-SS空气温度/相对湿度探头。根据要求，自定义插头也可用于传感器，如Vaisala HMP110，Campbell Scientific CS215，Rotronic HC2-S3或温度传感器和相对湿度探头的组合。请contact usto discuss options, andclick here to view a guideline用于自定义适配器插头约束。

Research Grade Accuracy

Extensive tests with replicate shields over the past three years have shown the TS-100compares favorably(± 0.02° C) to all the higher-powered industry standard fan-aspirated shields. Using our recommended ST-110 precision thermistor provides a measurement uncertainty of ± 0.1 C.

典型应用

Applications include air temperature and humidity measurement in weather networks, often for weather forecasting, andb0b体育app下载。风扇吸气屏蔽在陆地表面高于和气候变化监测方面的空气温度和湿度梯度的精确测量中也很重要。

High Quality Cable

吸气辐射屏蔽s feature an IP68, marine-grade stainless-steelcable connectorlocated on the fan (optional for temperature sensors) to simplify sensor removal for maintenance and recalibration. Cable is shielded, twisted-pair wire with a TPR jacket for high water resistance, UV stability, and flexibility in cold conditions.

Purchasing Options

There are two models to choose from when purchasing the shield. The TS-100 is a shield only model. The TS-110 comes with a discounted, pre-installed ST-110 precision thermistor that provides ± 0.1 C uncertainty right out of the box.

Warranty and Support

All Apogee products are backed by an industry-leading four year warranty and outstanding customer support.

Specs Table
Learn More

视频
Learn More

Case Studies
Learn More

苏pport Info
Learn More

TS-100-SS吸入辐射屏蔽（仅限屏蔽）

TS-100-SS吸入辐射屏蔽（仅限屏蔽）

$395.00

TS-110-SS Aspirated Radiation Shield (thermistor included)

TS-110-SS Aspirated Radiation Shield (thermistor included)

$ 445.00

TS-120-SS Shield / EE08包装

TS-120-SS Shield / EE08包装

790.00美元

TS-130-SS Shield/EE08 Probe/Thermistor Package

TS-130-SS Shield/EE08 Probe/Thermistor Package

$840.00

AT-001-SS Replacement Fan for Aspirated Shield

AT-001-SS Replacement Fan for Aspirated Shield

$ 53.00
