Photometric Sensor Support

Specifications
Case Studies
Product Manuals
Spec Sheets
Technical Drawings
FAQs
Software & Datalogger Programs
Recalibration & Repair

Photometric Sensor Specifications
Specification Icon
SE-100-SS SE-202-SS SE-205-SS se - 212党卫军 SE-215-SS SE-421-SS
Power Supply - 5 to 24 V DC 5.5 to 24 V DC 5 to 24 V DC 5.5 to 24 V DC 5.5 to 24 V DC
电流消耗 - maximum of 10 µA maximum of 10 µA maximum of 10 µA maximum of 10 µA 1.4 mA (quiescent); 1.8 mA (active)
Output (Sensitivity) 0.001 mV per lux 0.5 mV per lux 1 mV per lux 0.0167 mV per lux 0.033 mV per lux -
Calibration Factor 1000 lux per mV 2 lux per mV 1 lux per mV 60 lux per mV 30 lux per mV Custom for each sensor and stored in the firmware
Calibration Uncertainty ± 5 % ± 5 % ± 5 % ± 5 % ± 5 % ± 5 %
Output Range 0 to 200 mV 0 to 2500 mV 0 to 5000 mV 0 to 2500 mV 0 to 5000 mV SDI-12
Measurement Range 0到150000 lux 0 to 5000 lux 0 to 5000 lux 0到150000 lux 0到150000 lux 0到150000 lux
Measurement Repeatability Less than 0.5 % Less than 0.5 % Less than 0.5 % Less than 0.5 % Less than 0.5 % Less than 0.5 %
Long-term Drift Less than 2 % per year Less than 2 % per year Less than 2 % per year Less than 2 % per year Less than 2 % per year Less than 2 % per year
Non-linearity Less than 1 % Less than 1 % Less than 1 % Less than 1 % Less than 1 % Less than 1 %
Response Time Less than 1 ms Less than 1 ms Less than 1 ms Less than 1 ms Less than 1 ms Less than 0.6 s
Spectral Range CIE 1931 luminous efficiency function CIE 1931 luminous efficiency function CIE 1931 luminous efficiency function CIE 1931 luminous efficiency function CIE 1931 luminous efficiency function CIE 1931 luminous efficiency function
Field of View 180° 180° 180° 180° 180° 180°
Directional (Cosine) Response ± 2 % at 45°; ± 5 % at 75° ± 2 % at 45°; ± 5 % at 75° ± 2 % at 45°; ± 5 % at 75° ± 2 % at 45°; ± 5 % at 75° ± 2 % at 45°; ± 5 % at 75° ± 2 % at 45°; ± 5 % at 75°
Temperature Response Less than 0.1 % per C Less than 0.1 % per C Less than 0.1 % per C Less than 0.1 % per C Less than 0.1 % per C Less than 0.1 % per C
Operating Environment -40 to 70 C; 0 to 100 % relative humidity -40 to 70 C; 0 to 100 % relative humidity -40 to 70 C; 0 to 100 % relative humidity -40 to 70 C; 0 to 100 % relative humidity -40 to 70 C; 0 to 100 % relative humidity -40 to 70 C; 0 to 100 % relative humidity
Dimensions 30.5 mm diameter, 37 mm height 30.5 mm diameter, 37 mm height 30.5 mm diameter, 37 mm height 30.5 mm diameter, 37 mm height 30.5 mm diameter, 37 mm height 30.5 mm diameter, 37 mm height
电缆的质量(5米) 140 g 140 g 140 g 140 g 140 g 140 g
Cable 5米的屏蔽,双绞线带TPR夹套和M8不锈钢连接器 5米的屏蔽,双绞线带TPR夹套和M8不锈钢连接器 5米的屏蔽,双绞线带TPR夹套和M8不锈钢连接器 5米的屏蔽,双绞线带TPR夹套和M8不锈钢连接器 5米的屏蔽,双绞线带TPR夹套和M8不锈钢连接器 5米的屏蔽,双绞线带TPR夹套和M8不锈钢连接器

Photometric Sensor Case Studies
Apogee Instruments Photometric Sensor Case Studies
Typical Applications

Applications include:

• Highly accurate illuminance measurements (lux or footcandles)

Light Box Experiments
Light Box Experiments
Apogee sensors protecting Van Gogh's masterpieces.
Read More >
PDF >

If you would like to share your application of this product, pleaseclick here

Photometric Sensor Product Manuals
Product Manuals Icon
SE-100-SS
SE-202-SS
SE-205-SS
se - 212党卫军
SE-215-SS
SE-421-SS

Photometric Sensor Specification Sheets
Specification Sheets Icon
SE-100-SS
SE-202-SS
SE-205-SS
se - 212党卫军
SE-215-SS
SE-421-SS

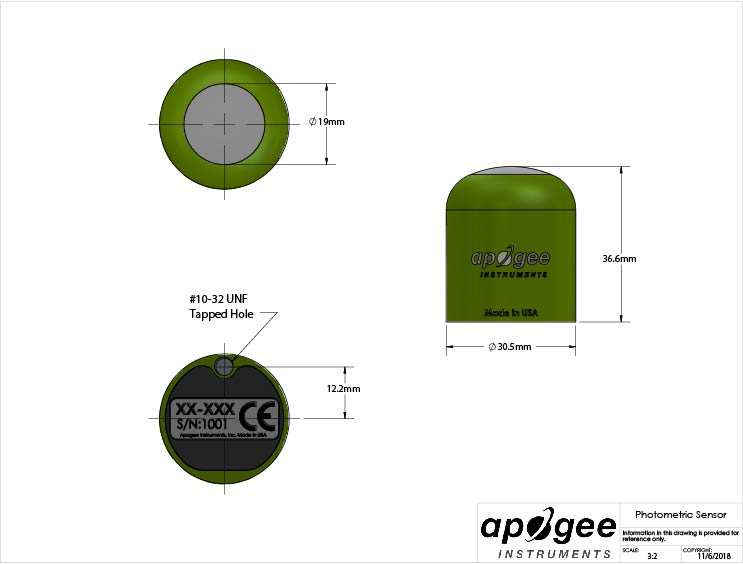

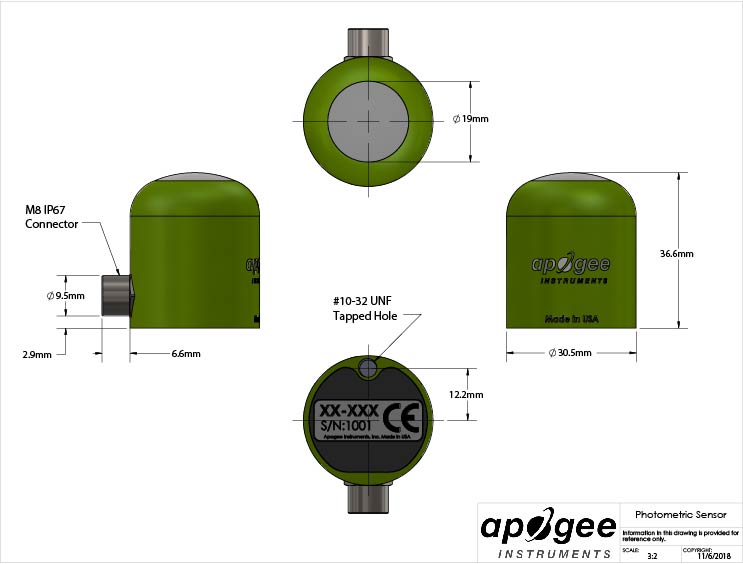

Photometric Sensor Technical Drawings
Technical Drawings Icon
SE-100-SS
SE-202-SS
SE-205-SS
se - 212党卫军
SE-215-SS
SE-421-SS

FAQs

What are the new cable connectors?

Photometric Sensor Software & Datalogger Programs
Specification Sheets Icon
Sample Datalogger Programs

Programs are in .CR1X format and can be downloaded for use with Campbell Scientific dataloggers. Right click and select "Save target as..." or an equivalent command in your browser. They can also be viewed using Wordpad or other text viewers.

Note:In 2020 the CR1000 Campbell Scientific datalogger was discontinued.Click here to access the discontinued .CR1 format sample datalogger programs >

Photometric Sensor - Unamplified >
Photometric Sensor - Amplified >
Photometric Sensor - SDI-12 >
