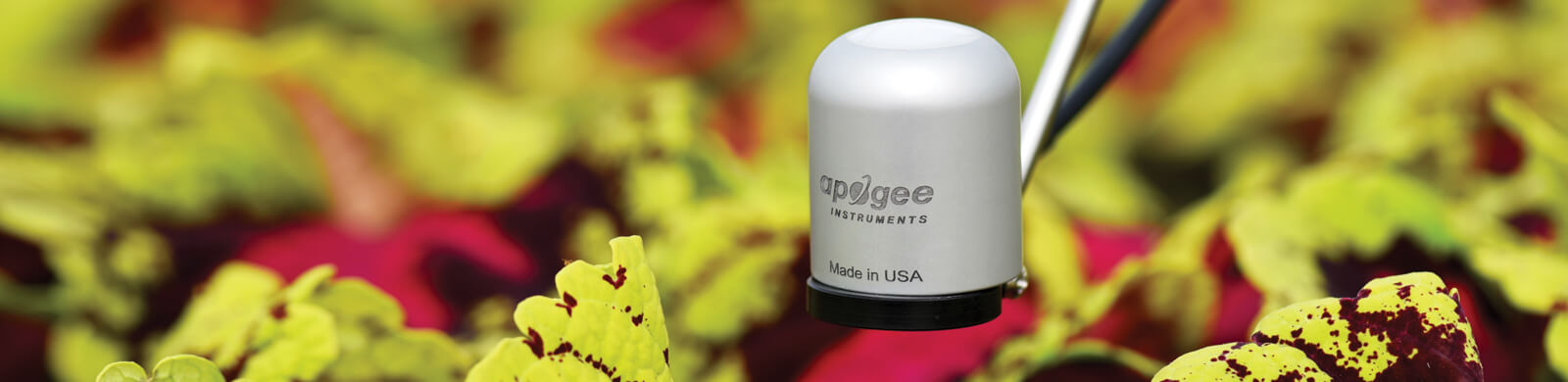

ePAR and ePFD Sensor Support

Extended range PFD sensor support

介绍
Specifications
视频
Product Manuals
规格表
技术图纸
有用的文章和链接
FAQs
软件和数据记录程序
重新校准和维修
Applications and Uses

Extended Range Sensor Introduction

Radiation that drives photosynthesis is called photosynthetically active radiation (PAR) and is typically defined as total radiation across a range of 400 to 700 nm. PAR is almost universally quantified as photosynthetic photon flux density (PPFD) in units of micromoles per square meter per second (µmol m-2s-1,等于每平方米/秒的微量浓因素)从400〜700nm(400至700nm的光子总数)总结。然而,紫外线和远红色光子在400-700nm的范围内的范围内也可以有助于光合作用和影响植物反应(例如,开花)。

Sensors that measure PPFD are often called quantum sensors due to the quantized nature of radiation. A quantum refers to the minimum quantity of radiation, one photon, involved in physical interactions (e.g., absorption by photosynthetic pigments). In other words, one photon is a single quantum of radiation. Sensors that function like traditional quantum sensors, but measure a wider range of wavelengths can be thought of as an ‘extended range’ quantum sensor.

传统量子传感器的典型应用包括在室外环境中的植物檐篷或温室和生长室中的进入的PPFD测量,并在同一环境中反射或覆盖天篷(传输)PPFD测量。Apogee的新款380-760 nmExtended Photosynthetically Active Radiation (ePAR)和340-1040 nm.扩展光子通量密度(EPFD)sensors are designed for making total photon intensity measurements of wider ranges than traditional PAR sensors that measure 400-700 nm.

ePAR Sensor Specifications
bob体育竞技Apogee仪器EPAR传感器规格
SQ-610-SS SQ-612-SS SQ-614-SS SQ-615-SS SQ-616 SQ-617-SS SQ-618-SS
电源 自我支持 5 to 24 V DC 12到24 V DC 5.5至24 V DC 5 V USB电源 5.5至24 V DC 5.5至24 V DC
电流消耗 - 在12 v处为57μA Maximum of 20 mA 在12 v处为57μA 记录时61 mA 1.4 mA(静止),1.8 mA(活跃) RS-232 37 MA;RS-485静态37 mA,活跃42 mA
灵敏度 每μmolm 0.01 mV-2s-1 0.625 mV per µmol m-2s-1 每μmolm 0.004 mA-2s-1 每微米1.25 mV-2s-1 - - -
Output Type 0 to 40 mV 0 to 2.5 V 4到20 mA 0 to 5 V USB SDI-12 modbus.
解析度 - - - - 0.1 µmol m-2s-1 - -
Calibration Factor 100 µmol m-2s-1每个mv. 1.6 µmol m-2s-1每个mv. 250 µmol m-2s-1每马 0.8 µmol m-2s-1每个mv. Custom for each sensor and stored in the firmware Custom for each sensor and stored in the firmware Custom for each sensor and stored in the firmware
Calibration Uncertainty ± 5 % ± 5 % ± 5 % ± 5 % ± 5 % ± 5 % ± 5 %
测量范围 0至4000μmolm-2s-1 0至4000μmolm-2s-1 0至4000μmolm-2s-1 0至4000μmolm-2s-1 0至4000μmolm-2s-1 0至4000μmolm-2s-1 0至4000μmolm-2s-1
Measurement Repeatability Less than 0.5 % Less than 0.5 % Less than 0.5 % Less than 0.5 % Less than 0.5 % Less than 0.5 % Less than 0.5 %
Long-term Drift per Year Less than 2 % per year Less than 2 % per year Less than 2 % per year Less than 2 % per year Less than 2 % per year Less than 2 % per year Less than 2 % per year
Non-linearity Less than 1 % (up to 4000 µmol m-2s-1) Less than 1 % (up to 4000 µmol m-2s-1) Less than 1 % (up to 4000 µmol m-2s-1) Less than 1 % (up to 4000 µmol m-2s-1) Less than 1 % (up to 4000 µmol m-2s-1) Less than 1 % (up to 4000 µmol m-2s-1) Less than 1 % (up to 4000 µmol m-2s-1)
响应时间 Less than 1 ms Less than 1 ms Less than 1 ms Less than 1 ms 软件更新每秒 Less than 0.6 s -
视野 180° 180° 180° 180° 180° 180° 180°
光谱范围 380 to 760 nm ± 5 nm (wavelengths where response is greater than 50 % of maximum) 380 to 760 nm ± 5 nm (wavelengths where response is greater than 50 % of maximum) 380 to 760 nm ± 5 nm (wavelengths where response is greater than 50 % of maximum) 380 to 760 nm ± 5 nm (wavelengths where response is greater than 50 % of maximum) 380 to 760 nm ± 5 nm (wavelengths where response is greater than 50 % of maximum) 380 to 760 nm ± 5 nm (wavelengths where response is greater than 50 % of maximum) 380 to 760 nm ± 5 nm (wavelengths where response is greater than 50 % of maximum)
定向(余弦)响应 ±2%在45°;75°的天顶角±5% ±2%在45°;75°的天顶角±5% ±2%在45°;75°的天顶角±5% ±2%在45°;75°的天顶角±5% ±2%在45°;75°的天顶角±5% ±2%在45°;75°的天顶角±5% ±2%在45°;75°的天顶角±5%
Azimuth Error Less than 0.5 % Less than 0.5 % Less than 0.5 % Less than 0.5 % Less than 0.5 % Less than 0.5 % Less than 0.5 %
Tilt Error Less than 0.5 % Less than 0.5 % Less than 0.5 % Less than 0.5 % Less than 0.5 % Less than 0.5 % Less than 0.5 %
Temperature Response -0.11±0.04%/每C -0.11±0.04%/每C -0.11±0.04%/每C -0.11±0.04%/每C -0.11±0.04%/每C -0.11±0.04%/每C -0.11±0.04%/每C
日常生活中的不确定性 不到5% 不到5% 不到5% 不到5% 不到5% 不到5% 不到5%
住房 阳极氧化铝机身用丙烯酸漫射器 阳极氧化铝机身用丙烯酸漫射器 阳极氧化铝机身用丙烯酸漫射器 阳极氧化铝机身用丙烯酸漫射器 阳极氧化铝机身用丙烯酸漫射器 阳极氧化铝机身用丙烯酸漫射器 阳极氧化铝机身用丙烯酸漫射器
IP Rating IP68 IP68 IP68 IP68 IP68 IP68 IP68
Operating Environment -40到70 c;0至100%相对湿度;可以在水中浸入30米的深处 -40到70 c;0至100%相对湿度;可以在水中浸入30米的深处 -40到70 c;0至100%相对湿度;可以在水中浸入30米的深处 -40到70 c;0至100%相对湿度;可以在水中浸入30米的深处 -40到70 c;0至100%相对湿度;可以在水中浸入30米的深处 -40到70 c;0至100%相对湿度;可以在水中浸入30米的深处 -40到70 c;0至100%相对湿度;可以在水中浸入30米的深处
Dimensions 30.5 mm diameter, 37 mm height 30.5 mm diameter, 37 mm height 30.5 mm diameter, 37 mm height 30.5 mm diameter, 37 mm height 30.5 mm diameter, 37 mm height 30.5 mm diameter, 37 mm height 30.5 mm diameter, 37 mm height
电缆的质量(5米) 140克 140克 140克 140克 140克 140克 140克
Warranty 4 years against defects in materials and workmanship 4 years against defects in materials and workmanship 4 years against defects in materials and workmanship 4 years against defects in materials and workmanship 4 years against defects in materials and workmanship 4 years against defects in materials and workmanship 4 years against defects in materials and workmanship

EPFD传感器规格
Apogee Instruments ePFD Sensor Specifications
SQ-620-SS SQ-622-SS SQ-624-SS SQ-625-SS SQ-626. SQ-627-SS
电源 自我支持 5 to 24 V DC 12到24 V DC 5.5至24 V DC 5 V USB电源 5.5至24 V DC
电流消耗 - 在12 v处为57μA Maximum of 20 mA 在12 v处为57μA 记录时61 mA 1.4 mA(静止),1.8 mA(活跃)
灵敏度 每μmolm0.05 mv-2s-1 0.625 mV per µmol m-2s-1 每μmolm 0.004 mA-2s-1 每微米1.25 mV-2s-1 - -
Output Type 0 to 200 mV 0 to 2.5 V 4到20 mA 0 to 5 V USB SDI-12
解析度 - - - - 0.1 µmol m-2s-1 -
Calibration Factor 20 µmol m-2s-1每个mv. 1.6 µmol m-2s-1每个mv. 250 µmol m-2s-1每马 0.8 µmol m-2s-1每个mv. Custom for each sensor and stored in the firmware Custom for each sensor and stored in the firmware
Calibration Uncertainty ± 5 % ± 5 % ± 5 % ± 5 % ± 5 % ± 5 %
测量范围 0至4000μmolm-2s-1 0至4000μmolm-2s-1 0至4000μmolm-2s-1 0至4000μmolm-2s-1 0至4000μmolm-2s-1 0至4000μmolm-2s-1
Measurement Repeatability Less than 0.5 % Less than 0.5 % Less than 0.5 % Less than 0.5 % Less than 0.5 % Less than 0.5 %
Long-term Drift per Year Less than 2 % per year Less than 2 % per year Less than 2 % per year Less than 2 % per year Less than 2 % per year Less than 2 % per year
Non-linearity Less than 1 % (up to 4000 µmol m-2s-1) Less than 1 % (up to 4000 µmol m-2s-1) Less than 1 % (up to 4000 µmol m-2s-1) Less than 1 % (up to 4000 µmol m-2s-1) Less than 1 % (up to 4000 µmol m-2s-1) Less than 1 % (up to 4000 µmol m-2s-1)
响应时间 Less than 1 ms Less than 1 ms Less than 1 ms Less than 1 ms 软件更新每秒 Less than 0.6 s
视野 180° 180° 180° 180° 180° 180°
光谱范围 340至1040 nm±5 nm(波长响应大于最大值的50%) 340至1040 nm±5 nm(波长响应大于最大值的50%) 340至1040 nm±5 nm(波长响应大于最大值的50%) 340至1040 nm±5 nm(波长响应大于最大值的50%) 340至1040 nm±5 nm(波长响应大于最大值的50%) 340至1040 nm±5 nm(波长响应大于最大值的50%)
定向(余弦)响应 ±2%在45°;75°的天顶角±5% ±2%在45°;75°的天顶角±5% ±2%在45°;75°的天顶角±5% ±2%在45°;75°的天顶角±5% ±2%在45°;75°的天顶角±5% ±2%在45°;75°的天顶角±5%
Azimuth Error Less than 0.5 % Less than 0.5 % Less than 0.5 % Less than 0.5 % Less than 0.5 % Less than 0.5 %
Tilt Error Less than 0.5 % Less than 0.5 % Less than 0.5 % Less than 0.5 % Less than 0.5 % Less than 0.5 %
Temperature Response -0.11±0.04%/每C -0.11±0.04%/每C -0.11±0.04%/每C -0.11±0.04%/每C -0.11±0.04%/每C -0.11±0.04%/每C
日常生活中的不确定性 不到5% 不到5% 不到5% 不到5% 不到5% 不到5%
住房 阳极氧化铝机身用丙烯酸漫射器 阳极氧化铝机身用丙烯酸漫射器 阳极氧化铝机身用丙烯酸漫射器 阳极氧化铝机身用丙烯酸漫射器 阳极氧化铝机身用丙烯酸漫射器 阳极氧化铝机身用丙烯酸漫射器
IP Rating IP68 IP68 IP68 IP68 IP68 IP68
Operating Environment -40到70 c;0至100%相对湿度;可以在水中浸入30米的深处 -40到70 c;0至100%相对湿度;可以在水中浸入30米的深处 -40到70 c;0至100%相对湿度;可以在水中浸入30米的深处 -40到70 c;0至100%相对湿度;可以在水中浸入30米的深处 -40到70 c;0至100%相对湿度;可以在水中浸入30米的深处 -40到70 c;0至100%相对湿度;可以在水中浸入30米的深处
Dimensions 30.5 mm diameter, 37 mm height 30.5 mm diameter, 37 mm height 30.5 mm diameter, 37 mm height 30.5 mm diameter, 37 mm height 30.5 mm diameter, 37 mm height 30.5 mm diameter, 37 mm height
电缆的质量(5米) 140克 140克 140克 140克 140克 140克
Warranty 4 years against defects in materials and workmanship 4 years against defects in materials and workmanship 4 years against defects in materials and workmanship 4 years against defects in materials and workmanship 4 years against defects in materials and workmanship 4 years against defects in materials and workmanship

EPAR和EPFD传感器视频
Apogee Instruments Extended Range PFD Sensor Videos

epar和epfd用布鲁斯博士博士解释说

Predicting Stem Elongation and Leaf Expansion: Percent far-red is a better predictor than PPE

如果您无法通过YouTube访问视频,点击这里.

远红:被遗忘的光子

如果您无法通过YouTube访问视频,点击这里.

将光子变成食物

如果您无法通过YouTube访问视频,点击这里.

朝向植物生长和发展的最佳光谱质量

如果您无法通过YouTube访问视频,点击这里.

PAR, PPF, PPFD, and PFD Explained

Photobiology Simplified with Dr Bruce Bugbee

如果您无法通过YouTube访问视频,点击这里.

EPAR和EPFD产品手册
Product Manuals Icon
SQ-610-SS
SQ-612-SS
SQ-614-SS
SQ-615-SS
SQ-616
SQ-617-SS
SQ-618-SS
MQ-610
SQ-620-SS
SQ-622-SS
SQ-624-SS
SQ-625-SS
SQ-626.
SQ-627-SS
MQ-620

EPAR和EPFD传感器规格表
Specification Sheets Icon

EPAR SPEM STOP(SQ-610系列)>
ePFD Spec Sheet (SQ-620 Series) >

EPAR和EPFD传感器技术图纸
技术图标图标
SQ-610-SS
SQ-612-SS
SQ-614-SS
SQ-615-SS
SQ-616
SQ-617-SS
SQ-618-SS
MQ-610
SQ-620-SS
SQ-622-SS
SQ-624-SS
SQ-625-SS
SQ-626.
SQ-627-SS
MQ-620

有用的文章和链接

Embracing a new understanding of PAR

Far-red photons have equivalent efficiency to traditional photosynthetic photons: Implications for redefining photosynthetically active radiation

Substituting Far-Red for Traditionally Defined Photosynthetic Photons Results in Equal Canopy Quantum Yield for CO2 Fixation and Increased Photon Capture During Long-Term Studies: Implications for Re-Defining PAR

在犹他州州立大学重新定义McCree曲线

水下测量:应用浸入效果校正因子

FAQs

What are the new in-line cable connectors?

ePAR and ePFD Sensor Software & Datalogger Programs
Specification Sheets Icon
示例数据记录程序程序

Programs are in .CR1X format and can be downloaded for use with Campbell Scientific dataloggers. Right click and select "Save target as..." or an equivalent command in your browser. They can also be viewed using Wordpad or other text viewers.

Note:2020年,CR1000 Campbell Scientific Datalogger已停止。点击这里to access the discontinued .CR1 format sample datalogger programs >

Quantum Sensor - Unamplified >
Quantum Sensor - Amplified >
Quantum Sensor - SDI-12 >
